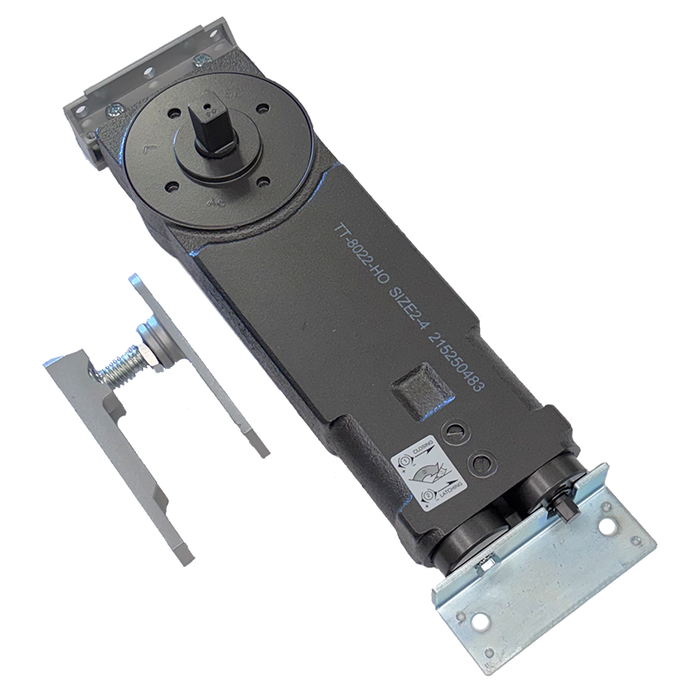

Taurus Transom Closer & Pivot Only, EN 2-4, Hold Open - 22mm Spindle
Stock Code:
TT-8022-HO
Description
- Adjustable power size 2-4
- Adjustable closing & latching speed
- Maximum door opening angle at 130°
- Mechanical hold-open at 90° (105° optional upon request)
- Concealed transom mount
- 22mm spindle
- Single or double action doors
- Max. door width 1100mm
- Max. door weight 100kg
Parts Included
- Transom closer
- Standard Bottom Pivot Kit - Max. 100kg (TT-BP100)
- Front mounting bracket
- Rear mounting bracket
- Screw pack
*Side load arms and cover plates ordered seperately*
Optional Accessories
- Standard Side Load Arm Kit (TT-TAS)
- Narrow Side Load Arm Kit (TT-TAN)
- Stainless Steel Cover Plate (TT-CP01-SS)
- Stainless Steel Cover Plate - Radius Ends (TT-CP02-SS)
- Heavy Duty Bottom Pivot Kit - Max. 150kg (TT-BP150)
- Front Reverse Mounting Bracket (TT-RMB)
